PlayMemories Camera Apps Help Guide

Digital Filter

Using “Digital Filter,” you can create shooting effects similar to graduated ND, reverse graduated ND, half color, color stripe, and other filters used in landscape photography, etc. For example, you can use it to shoot the beautiful “golden hour” or “blue hour” just before or after sunrise and sunset.

Basic operation guide

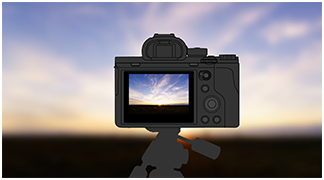

  1. Stabilize the camera with a tripod or similar device, and launch this application.
    • Before launching the application, make the “Pre-settings” as necessary.

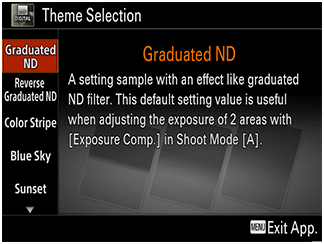

  2. Select a theme and press the center of the control wheel.

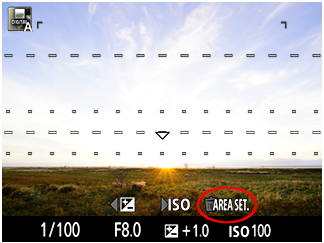

    The shooting screen is displayed.
  3. Compose the shot and press the (AREA SET.) button.

    The [Area Settings] screen is displayed.

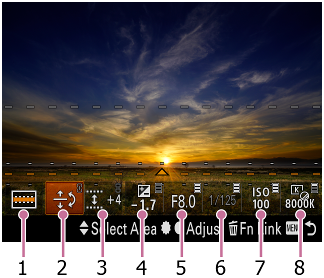

  4. Adjust the boundary, exposure, white balance, etc. for each area.
    • Press the top/bottom of the control wheel to select an area whose settings you want to change. Press the left/right side to select an item, and change the setting value by operating the wheel/dial. Or, you can also press the center of the control wheel to enter the dedicated screen and make detailed settings.

    1. Filter Set

    2. Position of Boundary

    3. Defocus of Boundary

    4. Exposure Compensation

    5. Aperture

    6. Shutter Speed

    7. ISO Sensitivity

    8. White Balance

    • You can adjust the boundary position and defocus settings according to the composition. For details, see “Boundary settings.”
    • Align the cursor with an item and press the Fn button or button to link that item between areas. For details, see “Linked settings.”

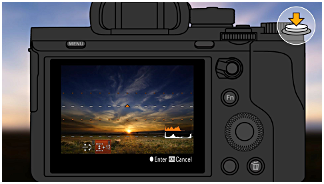

  5. Press the shutter button to shoot.

    The shutter is released continuously and two or three images are taken.

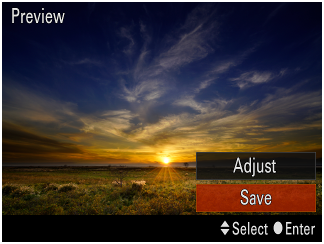

  6. Select [Save] on the [Preview] screen to save the image.

    • The actual shot may differ from what is displayed on the [Area Settings] screen. Select [Adjust] on the [Preview] screen to adjust the position or defocusing of the boundary for the actual shot.

Pre-settings

  • Before using a camera with a built-in ND filter, set [ND filter] to [Off] or [On] instead of [Auto] using MENU on the camera.
  • For cameras with a [Lens Comp.] function, we recommend that you set [Distortion Comp.] to [Off] using the camera’s MENU in advance. If it is set to anything other than [Off], there may be a gap between the boundary position on the [Area Settings] screen and that in the actual shot.
  • When using an interchangeable lens with an aperture ring, set the aperture ring to the “A” position.
